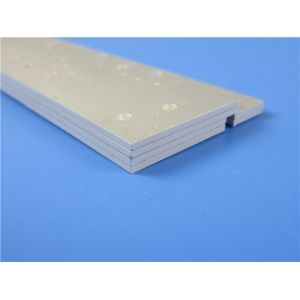

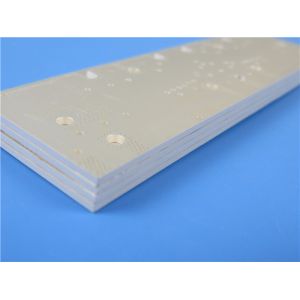

High Frequency PCB Built on Taconic RF-60A 60mil 1.5mm Core With Immersion Silver For

Power Amplifiers

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for

reference)

RF-60A is a cutting-edge organic-ceramic laminate within Taconic's ORganic CERamic (ORCER)

product line, engineered with a foundation of woven glass reinforcement. This innovative material

represents the culmination of Taconic's proficiency in ceramic fill technology and coated PTFE

fiberglass. RF-60A boasts remarkable interlaminar bond strength and resistance to solder,

showcasing its robust construction.

The proprietary formulation of RF-60A contributes to its outstanding performance attributes,

including low moisture absorption and consistent electrical properties across the material.

This unique blend of characteristics makes RF-60A an ideal choice for applications where

reliability, durability, and precise electrical performance are essential.

RF-60A's woven glass reinforcement plays a pivotal role in ensuring exceptional dimensional

stability and bolstering flexural strength, making it a robust choice for demanding applications.

This reinforcement also contributes to low Z-axis expansion, fostering plated-through-hole

reliability even in extreme thermal environments.

Featuring a dielectric constant of approximately 6.15, RF-60A stands out as an ideal high DK

(dielectric constant) material for applications necessitating compact circuit dimensions and

reduced weight. Its low electrical loss factor further enhances its suitability for RF circuits,

ensuring minimal signal degradation and optimal performance in high-frequency applications.

RF-60A excels in providing a balance of mechanical strength, thermal reliability, and electrical

performance, making it a versatile solution for a wide range of advanced electronic designs.

RF-60A laminates adhere fully to RoHS and WEEE directives, ensuring environmental compliance,

and are designed to meet the temperature requirements associated with lead-free soldering processes.

Their compatibility with these soldering techniques makes them suitable for modern manufacturing standards.

These laminates can undergo shearing, drilling, milling, and plating using standard methods applicable

to PTFE-woven fiberglass materials. This feature streamlines the production process, facilitating mass

production and enabling efficient manufacturing operations. The versatility and ease of processing of

RF-60A laminates make them a practical choice for a variety of industrial applications requiring precision

manufacturing and compliance with environmental regulations.

Our PCB Capabilities (RF-60A)

Benefits (in general):

Low Moisture Absorption

Stable DK over Frequency

Dimensionally Stable

Low Z-axis Expansion

High Flexural Strength

Exceptional Interlaminar Bonds

Typical Applications:

Power Amplifiers

Filters & Couplers

Passive Components

Antennas

Data Sheet of Taconic RF-60A
